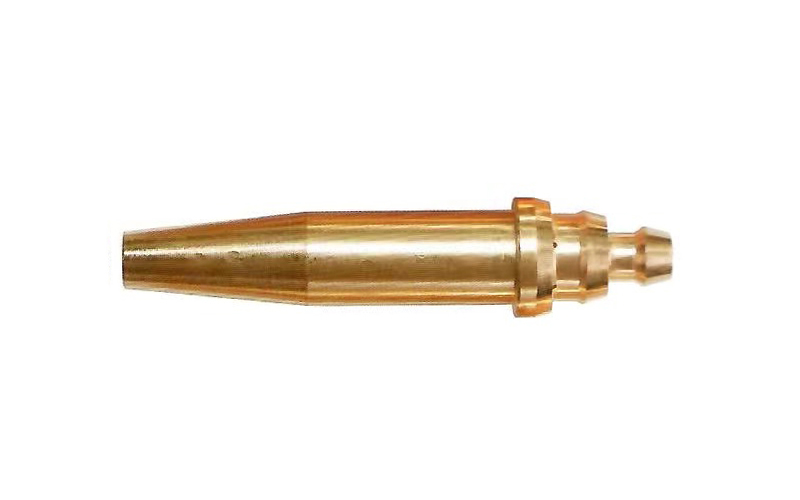

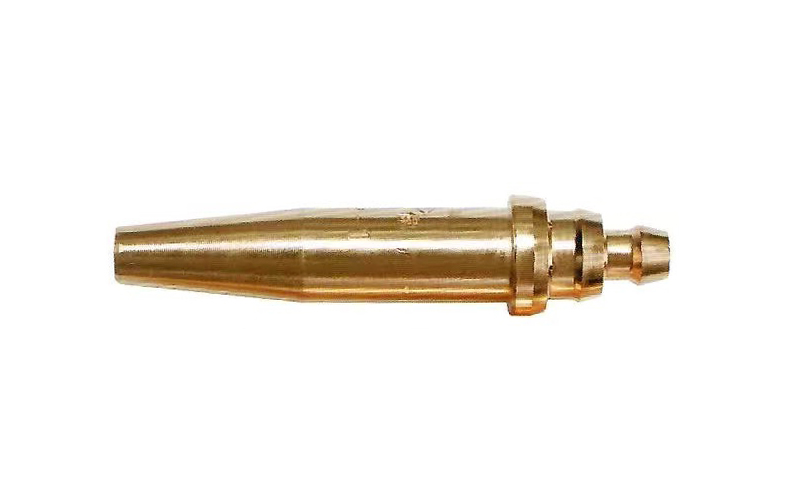

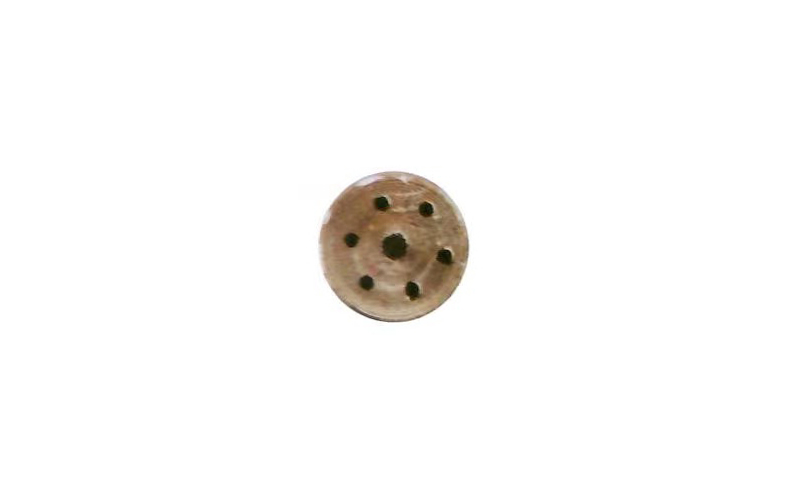

等压式乙炔割咀技术参数：
Equal-Pressure Style Acetylene Fast Cutting Nozzle.Technicaal Parametor Tadil.
型号 MOdle | 孔径(mm) Orifice dia | 长度(mm) Length | 切割厚度(mm) Cutting Thickness | 切割速度(mm/min) Cutting Velocity | 氧气压力(Mpa) Oxygen Pressure | 乙炔压力(Mpa) Acetylene Pressure | 氧气耗量(M³/h) Oxygen Consumption | 乙炔耗量(L/h) Acetylene Consumption |
G02-00# | 0.8 | 88 | 5-10 | 600-450 | 0.2-0.3 | 0.03 | 0.9-1.3 | 340 |
G02-0# | 1.0 | 88 | 10-20 | 480-380 | 0.2-0.3 | 0.03 | 1.3-1.8 | 340 |
G02-1# | 1.2 | 88 | 20-30 | 400-320 | 0.25-0.35 | 0.03 | 2.5-3.0 | 470 |
G02-2# | 1.4 | 88 | 30-50 | 350-280 | 0.25-0.35 | 0.03 | 3.0-4.0 | 470 |
G02-3# | 1.6 | 88 | 50-70 | 200-240 | 0.3-0.4 | 0.04 | 4.5-6.0 | 620 |
G02-4# | 1.8 | 88 | 70-90 | 260-200 | 0.3-0.4 | 0.04 | 5.5-7.0 | 620 |
G02-5# | 2.0 | 88 | 90-120 | 210-170 | 0.4-0.6 | 0.04 | 8.5-10.5 | 620 |
G02-6# | 2.4 | 88 | 120-160 | 180-150 | 0.5-0.8 | 0.04 | 12--15 | 780 |
G02-7# | 2.8 | 88 | 160-200 | 150-110 | 0.6-0.9 | 0.05 | 21-24.5 | 1000 |
G02-8# | 3.2 | 88 | 200-270 | 120-90 | 0.6-1.0 | 0.05 | 26.5-32 | 1000 |
G02-9# | 3.6 | 88 | 270-250 | 90-60 | 0.7-1.1 | 0.05 | 40-45 | 1300 |
G02-10# | 4.0 | 88 | 305-380 | 70-50 | 0.7-1.2 | 0.05 | 49-58 | 1600 |
