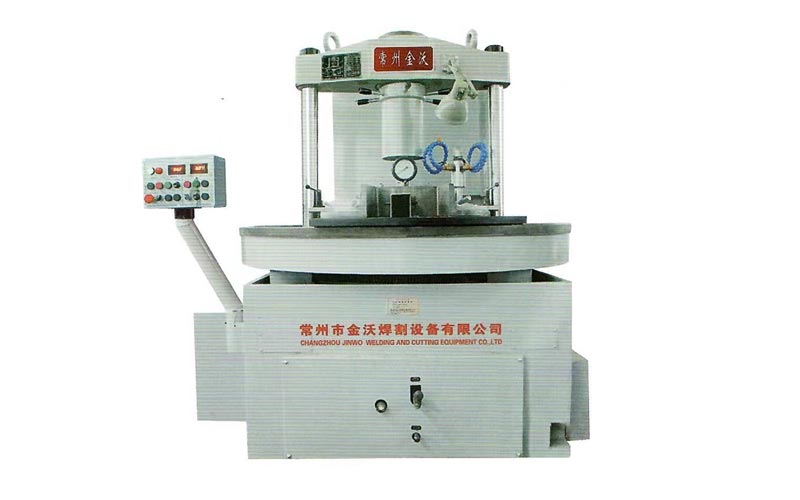

The machine tool adopts vertical layout and large cycle processing mode; Eccentric pressurization, spindle rotation adopts AC frequency conversion technology, high rotation accuracy; The vibration and transmission stability of the machine tool are obviously lower than those of other ball grinders of the same type, and the spindle is lubricated with imported grease, which is maintenance-free; The pressure of the machine tool is driven by hydraulic pressure and guaranteed by mechanical constant pressure nut; Electrical appliances are controlled by PLC; Cantilever button station, avoiding the splash of coolant; And the rotating speed of the spindle tray is displayed digitally.

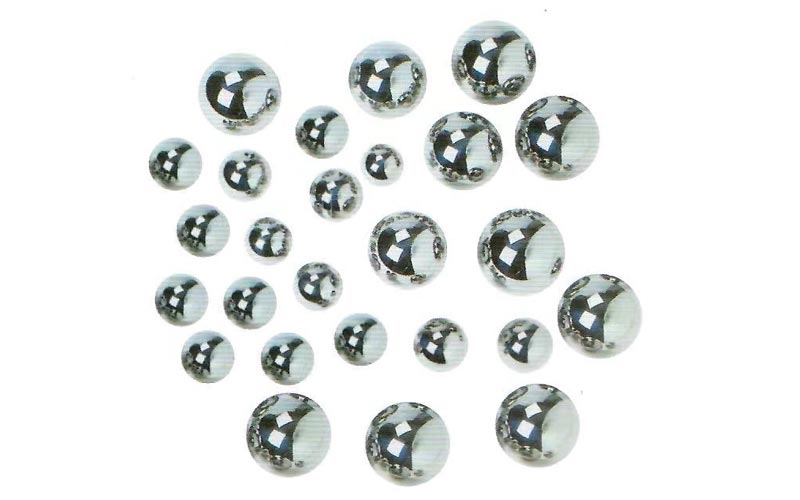

This special machine tool for the final machining of steel balls is suitable for the initial grinding and fine grinding of steel balls after hard grinding, and the precision of the processed steel balls can reach G10-G5 level.

Processing range: 02-025.4(mm)

Maximum working pressure: 60(kg)

Spindle speed: 15~47(r/min) variable frequency speed regulation

Check the rotation speed: 0.03~0.42(r/min)

Main motor power: 5.5(kw)

Motor power of material tray: 0.55(kw)

Dimension g of grinding plate: 0750× 0316× 90

Check the ball quantity: 250(kg)

Overall dimensions: (LxwxH)1846×2283×2180(mm)

Weight: 4500(kg)
