Main uses:

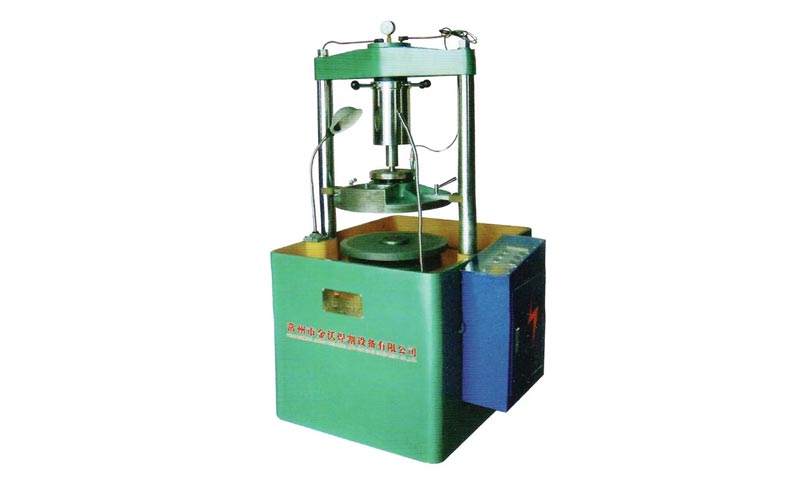

This machine tool is suitable for grinding steel balls below 6.35 mm. Because this machine works with hydraulic system, it is easy to use, high in work efficiency, strong in stability and beautiful in appearance.

Basic technical parameters:

1. The diameter of top grinding disc and pressure grinding disc is 600(mm)

2. The maximum working pressure of the grinding disc is 140(Mpa), and the pressure gauge indicates 2.0(Mpa).

3. The maximum speed of the top grinding disc is 110 rpm.

4. The sand table is 970 in length, 760 in width and 100 in depth.

5. The minimum distance between the pressure grinding disc and the top grinding disc is 100mm and the maximum is 310mm.

6. The power of the main motor is 4.0kw, the speed is 1440 rpm, and the model is Y12M-4.

7. The power of the oil pump motor is 1.5kw, the speed is 1400 rpm, and the model is Y90L-4.

8. Working pressure of oil pump is 6.3(Mpa), flow rate is 10(L/min), model YB1-10

9. The working pressure of 3-position 4-way electromagnetic directional valve is 31.5(Mpa), model 34bm-10bh-t.

10. Overall dimensions of machine tool: 1000×800×1700(mm)

11. Total weight of machine tool: 1000(kg)
