技术参数:
Technicaal Parametor Tadil
model | ZHGC230 | ZHGC300 | ZHGC400 | ZHGC500 | ZHGC600 | ZHGC800 | |
Crushing caliber(m) | 230×200 | 310×200 | 410×235 | 515×290 | 610x320 | 815×470 | |
Crushing capacity(kgh) | 100-150 | 150-200 | 200-250 | 300-350 | 350-450 | 450-600 | |
stationary knife | 2 | 2 | 2 | 2 | 4 | 4 | |
spinning blade | 6 | 9 | 12 | 15 | 18 | 24 | |
功率Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 22/30 |
HP | 5 | 7.5 | 10 | 15 | 20 | 30/40 | |
outline dimension (L×WXHcm) | 95×62×119 | 100×72×129 | 103×84×139 | 123×101×163 | 132×111×183 | 173×149×230 | |
net weight(kg) | 288 | 432 | 500 | 900 | 1100 | 2000 |

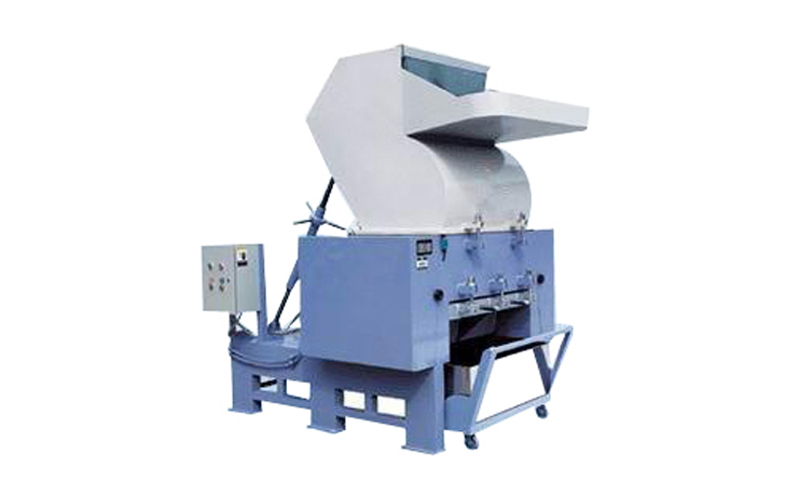

Knife crusher
Specifications: ZHGC300 Unit: Taiwan Remarks: Chip Cutter Crusher, Crusher, Crusher, Waste Recycling Machine
The die cutter structure is between claw cutter and flat cutter, which is suitable for crushing plastic products and nozzle materials such as ordinary sheets, pipes, profiles, plates and packaging materials.
Universal plastic pulverizer adopts sealed bearing to keep the bearing rotating well for a long time; Knife design is reasonable, product granulation is uniform; Cutter seat heat treatment, beautiful and generous shape design.
1. All-steel welding machine base is sturdy and durable.
2. Easy disassembly design, convenient cleaning and maintenance.
3. Imported Ming steel cutters are sharp, easy to replace and durable.
4. It is easy to crush all kinds of soft and hard plastics.
5. Equipped with motor overload and electric interlocking protection system to ensure safe use.
6. The minicomputer is equipped with pulleys to facilitate movement, while the mainframe has a water cooling system to facilitate time movement.

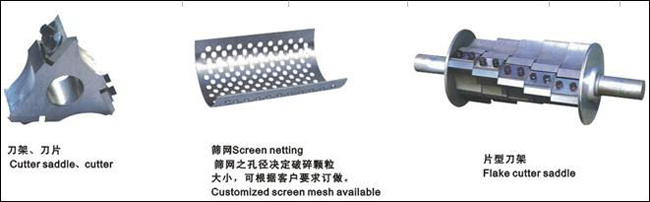

7. Different cutters and screens with different hole diameters can be selected.
